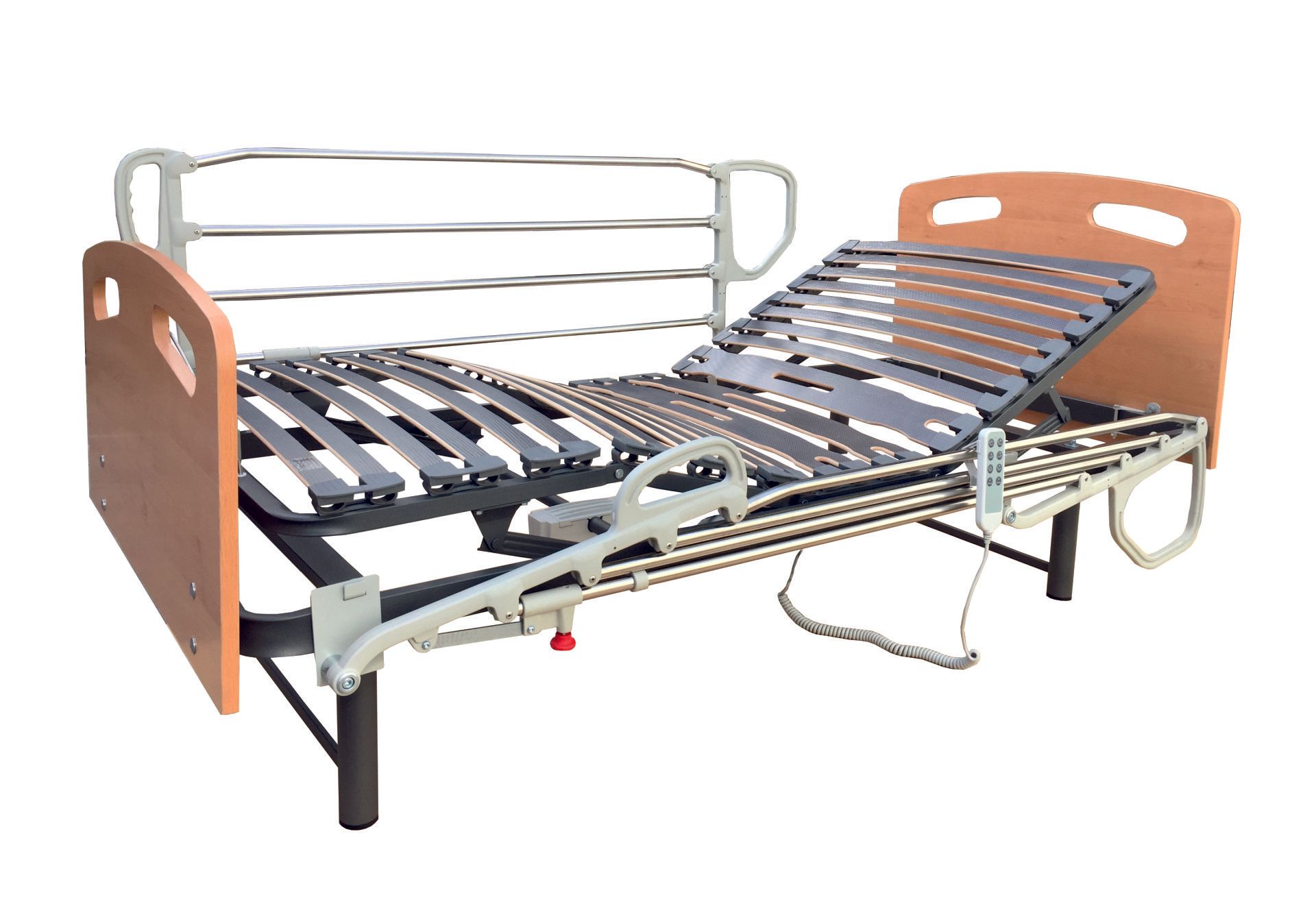

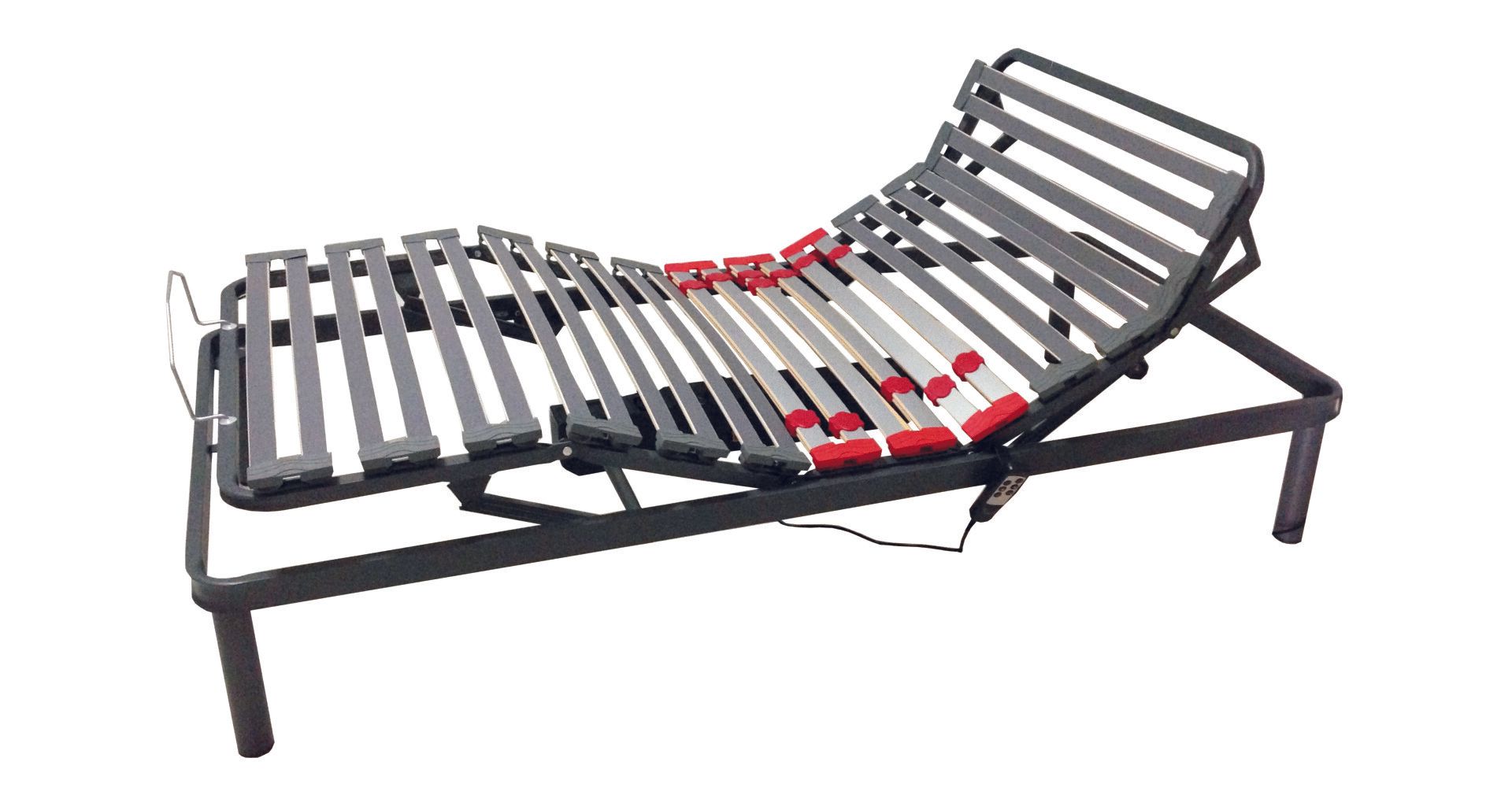

Elba bed lift truck

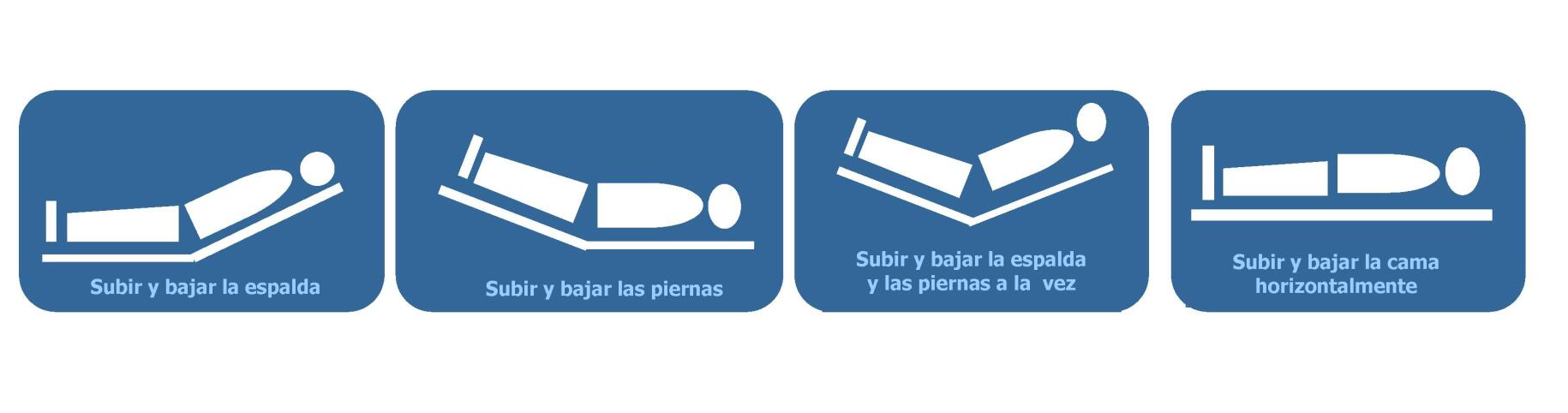

Bed for geriatric use, articulated in four planes and three joints, with elevation system. Electric drive by means of 2 German technology electric motors, low voltage (24 volts), with emergency battery REST function for resetting in case of power failure.

· Flexible vaporized wood sheets, on elastic dowels.

· Lifting system by connecting rod with steel structure with 2 and 8 mm thick profiles and finished in oven-dried Epoxy-polyester.

· Duo motor of 4000 N 4000 N. Linear motor of 6000 N. Protection type IPX 4.

· Horizontal elevation from H-42 to H-82 cm.

· Supports for incorporator and portaueros.

· Arch supports mattress.

· 4 wheels Ø 125 mm in diameter with anti-thread system, independent brake, two with brake and two without brake, crossed. Possibility of simultaneous brake.

· Maximum patient weight 135 kg.

· Allows the use of a crane.

· Standard width: 90 cm. (90 mattress).

· Standard length: 193 cm. (190 mattress).

· Adjustable beds for people with disabilities.

· Design S/Standard UNE-EN 60601-2-52:2010.
